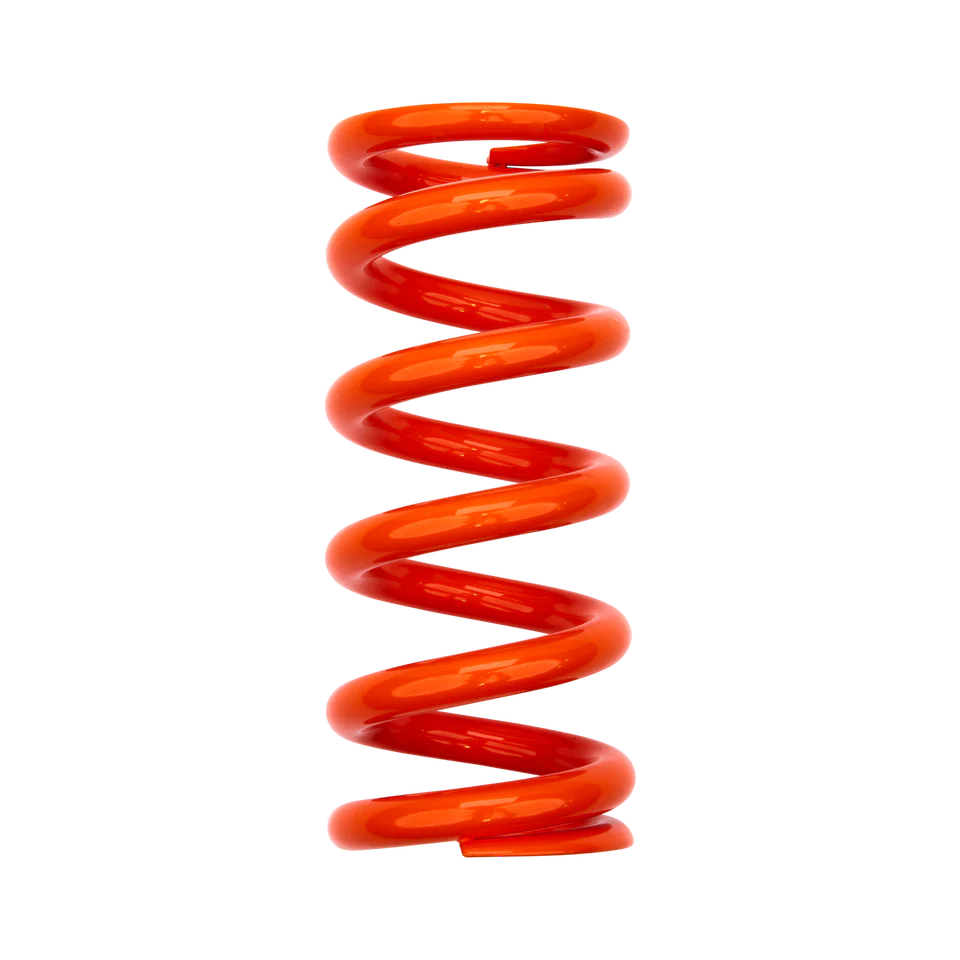

Fox SLS Orange Coil Spring
SLS (Super Light Steel) springs are now available from FOX for DHX and DHX2 rear shocks. These SLS springs are a lighter weight steel spring option offered in addition to our standard steel springs. The new SLS springs from FOX are lighter than titanium springs at more affordable prices. A proprietary surface treatment and stress relief process removes residual stresses from the spring, allowing them to withstand higher stresses. Each spring is optimized by using a smaller wire diameter and fewer coils, creating a lighter spring.
Some springs may be too long or short to fit on certain model shocks. Please refer to the charts below before purchasing a new spring for your shock. Please contact FOX directly with fit/application inquiries.
| 2022-2027 DHX/DHX Live Valve Neo and 2027 DHX2 Spring Fitment | |||
| Eye-to-Eye | Travel | Shortest TLG Spring that Fits | Longest TLG Spring that Fits |
| 165mm (T)* | 40-45mm | 3.947in/100.2mm | 4.485in/113.9mm |
| 185mm (T) | 47.5-55mm | 4.341in/110.3mm | 5.273in/133.9mm |
| 190mm* | 40-45mm | 3.947in/100.2mm | 4.485in/113.9mm |
| 205mm (T) | 57.5-65mm | 4.735in/120.3mm | 6.061in/153.9mm |
| 210mm | 47.5-55mm | 4.341in/110.3mm | 5.273in/133.9mm |
| 225mm (T) | 67.5-75mm | 5.128in/130.3mm | 6.848in/173.9mm |
| 230mm | 57.5-65mm | 4.735in/120.3mm | 6.061in/153.9mm |
| 250mm | 67.5-75mm | 5.128in/130.3mm | 6.848in/173.9mm |
*Eye-to-eye not available in MY26 DHX2
| 2021-2025 DHX2 Spring Fitment | |||
| Eye-to-Eye | Travel | Shortest TLG Spring that Fits | Longest TLG Spring that Fits |
| 7.5in | 2in | 4.32in/109.7mm | 4.83in/122.7mm |
| 7.875in | 2in | 4.32in/109.7mm | 5.21in/132.3mm |
| 8.5in | 2.5in | 4.82in/122.4mm | 5.83in/148.1mm |
| 9.5in | 3in | 5.32in/135.1mm | 6.84in/173.7mm |
| 10.5in | 3.5in | 5.82in/147.8mm | 7.83in/198.9mm |
| 185mm (T) | 55mm | 4.48in/113.8mm | 5.30in/134.6mm |
| 210mm | 47.5-55mm | 4.49in/114.0mm | 5.60in/142.2mm |
| 205mm (T) | 57.5-65mm | 4.88in/123.9mm | 6.09in/154.7mm |
| 230mm | 57.5-65mm | 4.88in/123.9mm | 6.39in/162.3mm |
| 225mm (T) | 67.5-75mm | 5.27in/133.8mm | 6.88in/174.7mm |
| 250mm | 67.5-75mm | 5.28in/134.1mm | 7.18in/182.4mm |
| 2016-2020 DHX2 Spring Fitment | |||
| Eye-to-Eye | Travel | Shortest TLG Spring that Fits | Longest TLG Spring that Fits |
| 7.875in | 2.25in | 4.381in/ 111.3mm | 5.03in/ 127.9mm |
| 8.5in | 2.5in | 4.633in/ 117.7mm | 5.65in/ 143.7mm |
| 8.75in | 2.75in | 4.883in/ 124.0mm | 5.90in/ 150.0mm |
| 9.5in | 3in | 5.133in/ 130.4mm | 6.66in/ 169.1mm |
| 10.5in | 3.5in | 5.635in/ 143.1mm | 7.65in/ 194.4mm |
| 185mm (T) | 50-55mm | 4.305in/ 109.3mm | 5.02in/ 127.6mm |
| 210mm | 50-55mm | 4.307in/ 109.4mm | 5.42in/ 137.6mm |
| 205mm (T) | 60-65mm | 4.699in/ 119.4mm | 5.81in/ 147.6mm |
| 230mm | 60-65mm | 4.699in/ 119.4mm | 6.20in/ 157.6mm |
| 225mm (T) | 70-75mm | 5.092in/ 129.3mm | 6.60in/ 167.6mm |
| 250mm | 70-75mm | 5.093in/ 129.4mm | 6.99in/ 177.6mm |
| All VAN/Bomber CR Spring Fitment | |||
| Eye-to-Eye | Travel | Shortest TLG Spring that Fits | Longest TLG Spring that Fits |
| 7.5in | 2in | 4.05in/102.9mm | 5.15in/130.8mm |
| 7.875in | 2in | 4.05in/102.9mm | 5.53in/140.5mm |
| 7.875in | 2.25in | 4.30in/109.2mm | 5.53in/140.5mm |
| 8.5in | 2.5in | 4.55in/115.6mm | 6.15in/156.2mm |
| 8.75in | 2.75in | 4.80in/121.9mm | 6.40in/162.6mm |
| 9.5in | 3in | 5.05in/128.3mm | 7.15in/181.6mm |
| 10.5in | 3.5in | 5.55in/141.0mm | 8.15in/207.0mm |
| 185mm (T) | 50-55mm | 4.21in/106.9mm | 5.19in/131.8mm |
| 210mm | 47.5-55mm | 4.43in/112.5mm | 5.92in/150.4mm |
| 205mm (T) | 57.5-65mm | 5.00in/127.0mm | 5.97in/151.6mm |
| 230mm | 57.5-65mm | 5.22in/132.6mm | 6.71in/170.4mm |
| 225mm (T) | 67.5-75mm | 5.78in/146.8mm | 6.76in/171.7mm |
| 250mm | 67.5-75mm | 6.00in/152.4mm | 7.50in/190.5mm |
