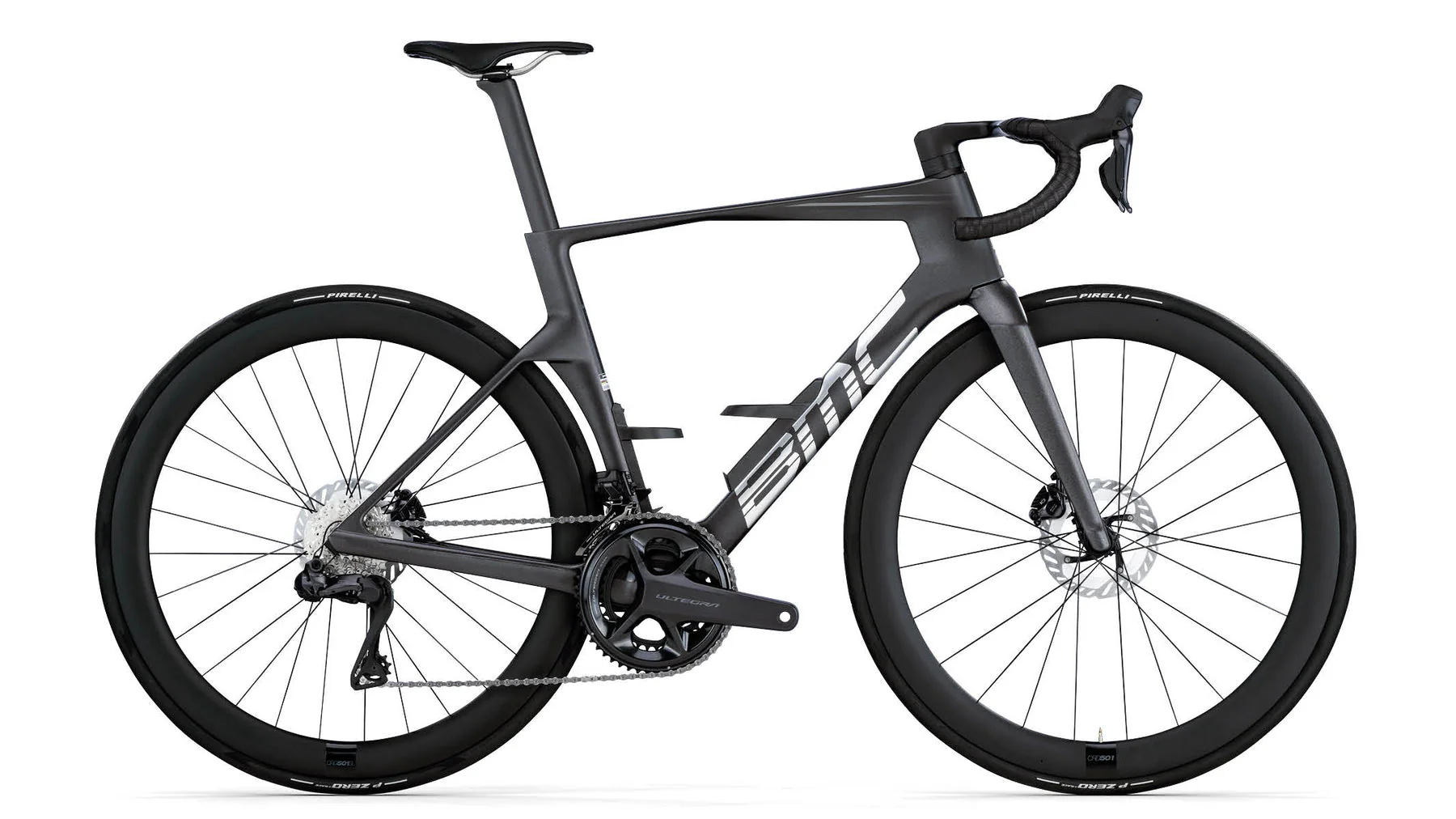

2026 BMC Teammachine R 01 FOUR

Shaped by the wind and crafted with Swiss precision, the BMC Teammachine R 01 is built for peak performance. Aerodynamic, lightweight, and engineered for speed.

Specs

Frameset

Cockpit

Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare

Seat

Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Selle Italia SLR Boost Superflow | TI316 Rail | 145mm

Drivetrain

Crankset:
SHIMANO Ultegra (FC-R8100)

Chainrings:
52-36T

Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)

Cassette:
SHIMANO Ultegra (CS-R8101)

Cassette Size:
11-30T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO Ultegra (RT-CL800)

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CR 50 SL Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-240 Center Lock

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories

In the Box:
Aerocore Bottle Cages | Computer mount for Garmin and Wahoo

Additional Information

Tire Clearance:
30mm measured tire

Weight without Pedals:
7.5kg | Size 54 as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Geometry

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Drop	135	135	135	135	135	135
Bar Reach	77	77	77	77	77	77
Bar Width	360/420	360/420	360/420	360/420	360/420	360/420
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	184	211
Head Tube Angle	71.5°	71.5°	72.3°	72.3°	72.3°	72.3°
Rear Center	410	410	410	410	410	410
Seat Angle	74°	74°	73.5°	73.5°	73°	73°
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Standover Height	721	755	781	799	813	836
Stem Angle	-15°	-15°	-15°	-15°	-15°	-15°
Stem Length	90	100	100	110	110	120
Top Tube	515	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030
